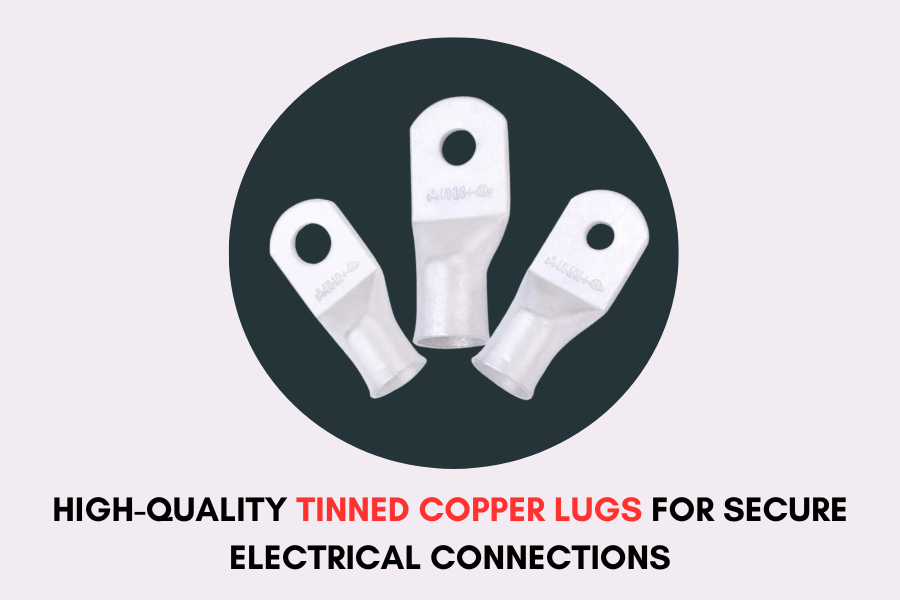

In the realm of electrical installations, the integrity of connections is paramount. A faulty connection can lead to a cascade of problems, from power loss and equipment damage to, in severe cases, fire hazards. At the heart of creating robust and reliable electrical connections lies the humble yet critical component: the lug. Specifically, high-quality tinned copper lugs stand out as the superior choice for ensuring secure, long-lasting, and efficient electrical pathways.
The Unseen Heroes: Understanding Electrical Lugs
Electrical lugs are essential connectors used to terminate cables, allowing them to be easily connected to electrical devices, busbars, or other cables. They provide a safe and effective way to transition from a flexible wire to a rigid connection point. Without proper lugs, wires would be directly clamped, leading to potential damage, loose connections, and increased resistance – all detrimental to electrical system performance.
Why Tinned Copper Reigns Supreme
While various materials are used for electrical lugs, tinned copper emerges as the undisputed champion due to a combination of inherent properties and strategic enhancements.
The Power of Copper
Copper is renowned for its exceptional electrical conductivity, second only to silver. This high conductivity ensures minimal power loss and heat generation during current flow, contributing to greater energy efficiency and reduced operational costs. Furthermore, copper boasts excellent ductility and malleability, allowing lugs to be precisely formed and crimped onto wires, creating a strong mechanical and electrical bond. Its inherent corrosion resistance is also a significant advantage, particularly in dry environments.
The Advantage of Tinning: Enhanced Protection and Performance
While copper is excellent, its surface can oxidize over time, especially when exposed to moisture and other environmental factors. This oxidation, though superficial, can slightly increase contact resistance. This is where the tinning process becomes invaluable.
Tinning involves applying a thin layer of tin to the surface of the copper lug. This seemingly simple step provides a multitude of benefits:
- Superior Corrosion Resistance: Tin acts as a sacrificial layer, protecting the underlying copper from oxidation and corrosion. This is particularly crucial in humid or corrosive environments, preventing degradation of the connection over time.
- Improved Conductivity and Lower Contact Resistance: While copper is highly conductive, the tin coating further enhances the surface conductivity and helps to maintain lower contact resistance, even after prolonged exposure to the elements. This ensures a more efficient flow of electricity.
- Enhanced Solderability: For applications requiring soldering, the tin coating significantly improves the solderability of the lug, making it easier to create strong, reliable soldered connections.
- Reduced Galling: Tin acts as a lubricant, reducing friction and galling when mating surfaces are brought together, leading to more secure and stable connections.
- Aesthetic Appeal: While not directly related to performance, the bright, silvery finish of tinned copper lugs provides a cleaner and more professional appearance to electrical installations.
Key Considerations for High-Quality Tinned Copper Lugs
Not all tinned copper lugs are created equal. When selecting these critical components, several factors differentiate high-quality products from inferior alternatives:
- Material Purity: The quality of the copper itself is paramount. High-quality lugs will be manufactured from 99.9% pure electrolytic copper, ensuring optimal conductivity and mechanical strength.
- Tinning Process and Thickness: The tinning process should be uniform and applied with sufficient thickness to provide lasting protection. Electro-tinning is a common and effective method, ensuring a consistent and durable coating.
- Seamless or Brazed Barrels: For optimal crimping and pull-out strength, lugs should ideally feature seamless barrels or securely brazed seams. Inferior designs with open or weakly joined seams can compromise the connection’s integrity.
- Barrel Length and Wire Entry: Adequate barrel length is crucial for proper crimping, accommodating the full strand of the conductor and distributing the crimping force evenly. A chamfered or flared wire entry facilitates easy insertion of the wire, preventing stray strands and ensuring a neat termination.
- Inspection Window (Optional but Beneficial): Some high-quality lugs incorporate an inspection window, allowing visual verification that the conductor is fully inserted before crimping. This reduces the risk of improper connections.
- Compliance with Standards: Reputable manufacturers adhere to industry standards such as UL, CSA, and RoHS. Compliance with these standards assures that the lugs meet specific performance, safety, and environmental criteria.
- Proper Sizing: Lugs must be correctly sized to the gauge of the wire they will terminate. Oversized or undersized lugs will result in poor connections. Manufacturers typically provide clear sizing information.
The Importance of Proper Installation
Even the highest quality Tinned Copper Wire Lugs will fail if not installed correctly. Proper crimping is crucial for creating a robust electrical and mechanical bond. Using the correct crimping tool, specifically designed for the lug and wire gauge, is non-negotiable. Hydraulic crimpers are often recommended for larger gauge wires to ensure sufficient and uniform pressure. Skipping this step or using inadequate tools will undermine all the advantages offered by high-quality lugs.
Applications Across Industries
High-quality tinned copper lugs find extensive application across a vast array of industries where reliable electrical connections are non-negotiable:
- Industrial Automation: Powering motors, control panels, and robotics in factories.
- Renewable Energy: Critical for connecting solar panels, inverters, and battery storage systems.
- Telecommunications: Ensuring uninterrupted power and signal transmission in data centers and communication networks.
- Automotive: Found in various electrical systems within vehicles, especially in heavy-duty and electric vehicles.
- Marine: Essential for marine vessels due to the highly corrosive saltwater environment.
- Residential and Commercial Building Wiring: Providing secure connections in distribution panels and various electrical appliances.
Conclusion
In the intricate world of electrical systems, the seemingly small detail of a lug can have enormous implications. Investing in high-quality Tinned Copper Cable Lug is not merely an expense; it is an investment in safety, efficiency, and long-term reliability. Their superior conductivity, enhanced corrosion resistance, and robust mechanical properties, particularly when combined with proper installation techniques, make them the indispensable choice for anyone seeking to create secure and enduring electrical connections. By prioritizing these unseen heroes, we can ensure the seamless and safe flow of electricity that powers our modern world.
